CAT 420 Backhoe Loader Multi-Fuction Backhoe for Sale

Short Description:

The Cat® 420F2 and 420F2 IT Backhoe Loaders deliver performance, increased fuel efficiency, superior hydraulic system, versatility and an all new operator station. The 420F2 and 420F2 IT feature the following:

Ergonomic Operator Station – Ample legroom inside the cab makes rotating the seat simple. The air suspension seat provides comfort to the operator while roading. New backhoe control pods allow for unlimited adjustability.

Load Sensing Hydraulics – The Cat Backhoe Loader’s load sensing piston pump provides full hydraulic lifting and digging forces at any engine speed. Variable flow pump matches hydraulic power to work demands.

Machine Performance – The Cat C4.4 ACERT™ engine delivers solid performance and meets U.S. EPA Tier 4 Final/EU Stage IV emission standards by utilizing Selective Catalytic Reduction technology with a diesel oxidation catalyst. The system allows the operator to disconnect the machine, even while the diesel exhaust fluid is being purged from the system.

Send email to us

Product Detail

Product Tags

CAT 420 Backhoe Loader Multi-Fuction Backhoe for Sale

Product Description

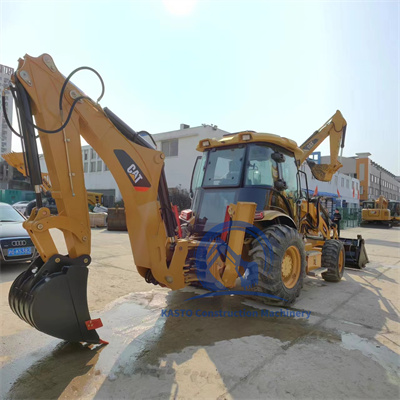

The CAT420 is a backhoe loader manufactured by Caterpillar Inc., a well-known manufacturer of heavy equipment. This machine is designed to offer versatility and efficiency for various construction, excavation, and loading tasks.

Engine: The CAT420 is powered by a Caterpillar C4.4 engine, which is a 4-cylinder, turbocharged diesel engine. It delivers a rated net power of approximately 96 horsepower (71.6 kW).
Operating Weight: The operating weight of the CAT420 ranges from approximately 7,400 kg to 7,900 kg (16,300 lbs to 17,400 lbs), depending on the specific configuration and attachments.
Backhoe Capacity: The backhoe attachment of the CAT420 provides a digging depth of up to approximately 4.5 meters (14 feet 8 inches) and a reach of approximately 6.9 meters (22 feet 8 inches). The machine offers various bucket sizes and can have a maximum bucket capacity of around 0.96 cubic meters (1.26 cubic yards).
Loader Capacity: The loader attachment of the CAT420 has a lift capacity ranging from approximately 2,200 kg to 2,500 kg (4,800 lbs to 5,500 lbs). The loader bucket capacity varies depending on the specific configuration and can range from approximately 0.96 cubic meters to 1.2 cubic meters (1.26 cubic yards to 1.57 cubic yards).
Hydraulic System: The CAT420 is equipped with a powerful hydraulic system that provides precise and responsive control for the backhoe, loader, and auxiliary attachments. The system ensures efficient performance and enables various functions like digging, lifting, and loading.

Specification

Net Power - SAE J1349	92 HP
Displacement	220 in³
Power Rating Conditions - No De-Rating Required Up To	10000 ft
Ratings at 2,200 rpm - Gross Power ISO 14396	100 HP
Net Torque Rise - 1,400 rpm - SAE J1349	322 ft-lb
Net Peak Power Rating - ISO 9249 at 1,800 rpm	105 HP
Net Power Rating at 2,200 rpm - ISO 9249	91 HP
Engine Model	C3.6 74.5 kW (100 hp) Electronic Turbo Intercooled
Emissions	Engine meets Tier 4 Final/Stage V emission standards.
Ratings at 2,200 rpm - Gross Power SAE J1995	102 HP
Net Torque Rise - 1,400 rpm	47%
Net Power Rating at 2,200 rpm - SAE J1349	92 HP
Dimensions - Bore	3.86 in
Dimensions - Stroke	4.72 in
Net Peak Power Rating @ 1,800 rpm - SAE J1349	105 HP
